Subsea Umbilical Cable Manufacturers: Engineered ROV Umbilicals

Manufacturer Positioning

As a specialized subsea umbilical cable manufacturer, we design and produce custom ROV umbilicals for offshore energy solutions and subsea production systems support.

We do not manufacture "generic cables." Our focus is exclusively on high-reliability, custom-engineered ROV umbilicals for ROVs, tracked vehicles, and TMS transition cables  delivered in small to medium volumes.

We provide end-to-end engineering capabilities, including:

buoyancy calculation

armoring architecture design

molded terminations to factory acceptance testing (FAT)

Core Manufacturing Capabilities, What We Deliver?

Below are the specific capabilities that distinguish us as a technical manufacturer.

Neutral / Zero Buoyancy Design:

Precise buoyancy calculation for different water depths and ROV types, minimizing ROV power consumption during station-keeping

Armored & Non-Armored Configurations:

Steel wire armoring (high tensile strength), Kevlar reinforcement (lightweight), or non-armored (maximum flexibility)

Composite Signal Integration:

Power (up to 6 kV) + coaxial video + twisted pair control + fiber optic (optional) , all in a single jacket

Minimum Bend Radius Optimization:

Defined dynamic bending radius (DBR) for frequent handling, winch drum winding, and sheave passage

Molded Terminations In-house:

vulcanization equipment providing IP68-rated waterproof terminations, significantly reducing termination failure points

Cut-Resistant Polyurethane:

Jacket High abrasion resistance, seawater resistance, and oil resistance

Additional commitments:

Small batch customization accepted (100 meters minimum order length)

Sample prototyping available, customer validation required before mass production

Product Line

The following table presents our standard product matrix. Complete customization is available beyond these ranges.

Note: The parameters above represent standard ranges. We support full customization, including conductors, length, jacket color, connector type, and printed identification.

Quality Assurance

We do not rely on generic certificates. Every cable is verified against measurable criteria.

Design Standards Referenced:

1. ISO 13628-5 / API 17E (design reference)

2. DNV type approval available upon request (where applicable)

3. Factory Acceptance Tests (FAT) , Report Provided Per Cable:

4.  Conductor continuity & insulation resistance: 500V DC / 1 min

5. High voltage withstand (AC/DC): AC 2kV + 3× rated voltage / 5 min

6. Fiber optic attenuation (if applicable): OTDR

7. Tensile sampling test: To proof load or break

8. Jacket abrasion sampling test: ASTM D4060 (Taber)

9. Optional additional tests (available on request):

Bending fatigue test

Torsion test

Seawater immersion aging test

Industry Applications, Where Our Cables Are Deployed?

Our ROV umbilicals support offshore energy solutions and subsea production systems across multiple sectors.

Industry Typical ROV Application

Oil & Gas Subsea structure inspection, valve intervention, anode replacement

Offshore Wind Cable lay monitoring, scour inspection, array cable trenching support

Defense / Rescue Wreck salvage, submarine rescue, underwater recovery

Marine Research Manned submersible support, seafloor observatory networks

Subsea Infrastructure Dam intake inspection, nuclear power plant cooling water culverts

[Case Study]

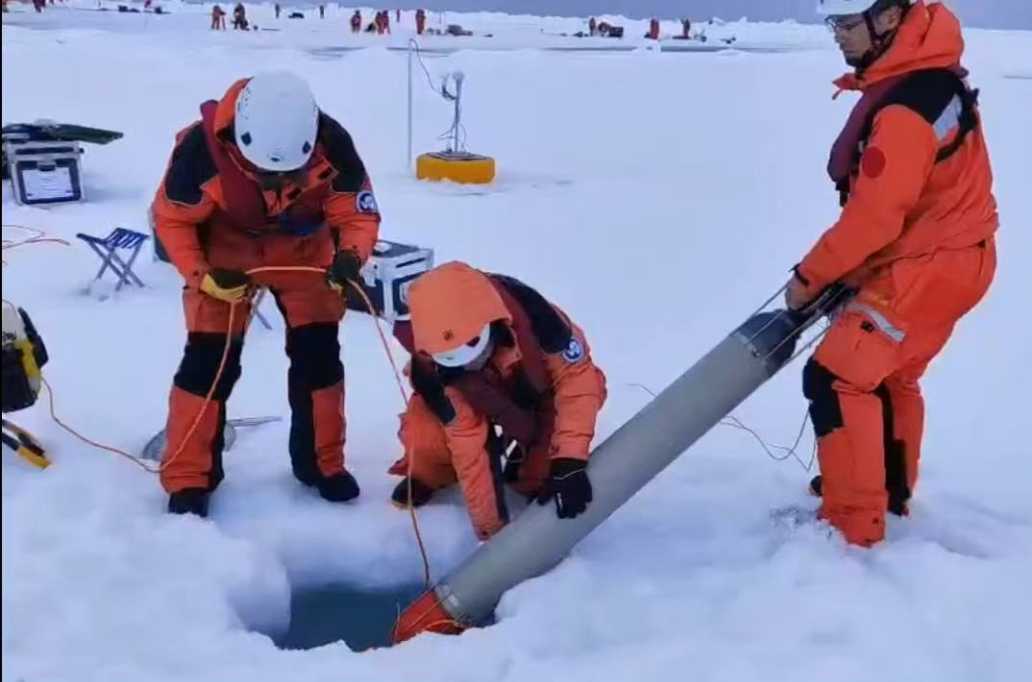

RouLine Cables Support Chinese Antarctic Research in Extreme Underwater Environments

A polar research institute required an ROV umbilical capable of operating at -25°C with maintained flexibility and zero buoyancy. We delivered a 2,200-meter Kevlar-reinforced cable with molded terminations. The cable has completed three field seasons without failure.

Why Choose Us: Differentiators vs. Other Manufacturers

True Customization

We do not force stock specifications. Conductors, insulation, armoring, and jacket , all adjustable per your requirement

In-House Molded Terminations

No need to source third-party termination services. We provide one-stop completion

Small Batch Friendly No MOQ (Minimum Order Quantity).

Suitable for R&D, prototype testing, and small-scale projects

Rapid Engineering Response

Support engineers communicate directly with your technical team — no sales intermediaries

Transparent Test Reports

Every cable is tested before shipment. Reports accompany each delivery

How to Work With Us

We have structured our engagement process to minimize friction and maximize technical clarity.

Step 1 : Submit your requirements

Include: ROV type, operating depth, power requirements (voltage/current), signal types, and estimated length

Step 2 : Preliminary proposal within 24–48 hours

We provide technical feasibility assessment and budgetary quotation

Step 3: Design review prior to production

Upon order confirmation, we supply construction drawings and technical specification sheets for your approval

Step 4: Production and witnessing

Factory Acceptance Test (FAT) can be witnessed on-site or via remote video link

Step 5: Delivery with complete documentation

Shipment accompanied by full test report package

Call to Action

Submit your ROV umbilical requirements to receive a technical proposal include the following minimum information:

ROV model / class

Maximum operating depth

Power (voltage, current, phases)

Signals (video, control, fiber if required)

Estimated length

Disclaimer: The parameters and specifications stated above are typical values. Final specifications are subject to customer-approved technical datasheets.
