Custom ROV Cable for Reliable Underwater Operations
ROV Umbilical Cable with Hydraulic Tube, integrates hydraulic tube with power conductors, fiber optics and signal cores into a single rugged cable solution. ROV cables are widely used in work-class ROVs and offshore equipment that require reliable hydraulic power and data transmission in harsh underwater environments. For systems combining hydraulic, electrical and communication functions, they are often used as part of a complete ROV Umbilical Cable solution.
RouLine designs rov umbilical cable with configurable hose sizes, electrical conductors, optical fibers, strength members and jacket materials to meet your operating depth, pressure rating and mechanical performance requirements. For applications requiring integrated power, fiber optics and fluid transmission, explore our Hybrid Subsea Cable solutions.
Custom Cable Solutions | Flexible MOQ | Fast Lead Time |
Key Features
Hydraulic Control: High pressure hydraulic control hoses
Extensive Range: 1 to 60 cores
Conductor Cross-Sections: 0.08 mm² to 35 mm²
Other Options: Water Tightness Compound / Sealant / Water-Blocking Yarn
Corrosion Resistance: resistance to hydrolysis, corrosion, abrasion, and ultraviolet light.

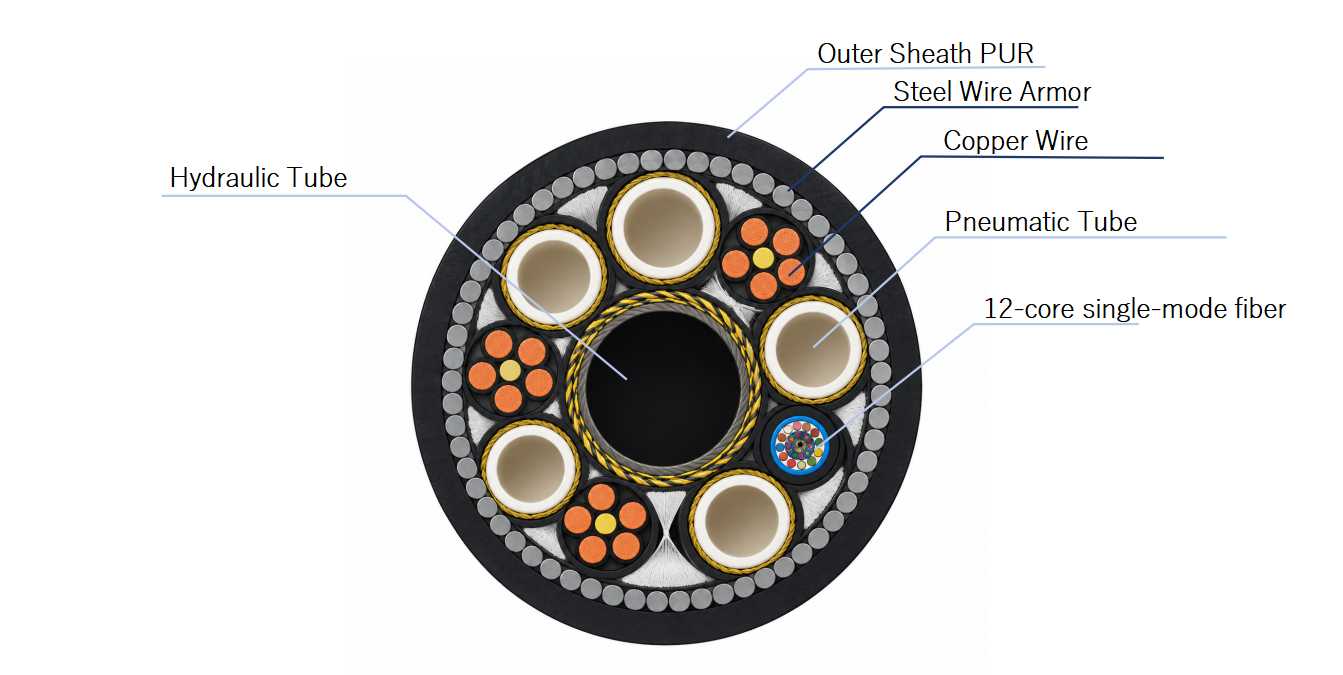

Construction
Specifications
Parameter | Specification |
Cable Type | ROV Umbilical Cable |
Conductor | Tinned copper, Class 5 flexible copper |
Conductor Standard | IEC 60228 |
Conductor Cross-Section | 1.5–120 mm² |
Insulation | EPR , DPEM , TPE, XLPE, |
Core Structure | Anti-twist layering, grouped gap filling, twisted pairs, layered binding |
Optical Fiber | Single-mode / Multimode, 6–24 fibers |
Shielding | Tinned copper braid, 360° EMI/RFI shielding |
Tensile Member | Central Kevlar core and interstitial Kevlar filler |
Outer Sheath | Extruded polyurethane (PUR) |
Rated Voltage | 300V ~ 1 kV (for higher voltage, please contact) |
Insulation Resistance | ≥20 MΩ·km at 20°C |
Operating Temperature | −30°C to +90°C |
Hydraulic Lines | Support |
Pneumatic Lines | Support |
Strain Gauges | Optional |
Bend Restrictors | Customized |
Length Marking | Customized |
We offer solutions tailored to specific customer requirements.
Product Gallery
Applications
The hydraulic ROV umbilical cable is designed for demanding subsea and marine applications, including:
↗Subsea Mining Operations
↗Marine Seismic Survey Systems
Quality Testing & Control | Manufacturing Process |
Manufacturing Process
→Cable Core Assembly Process →Wire Stranding Process →Kevlar braiding process
RouLine ROV cables are manufactured according to project-specific requirements, from conductor and reinforcement selection to cable assembly, forming, testing, and final inspection.
Videos of ROV Cable Manufacturing →
Test Equipment
Industrial cables manufactured by RouLine are inspected using dedicated equipment for electrical, mechanical, and environmental testing. Depending on the cable design, testing may include high-voltage testing, insulation and continuity checks, tensile testing, flexing, temperature-humidity, salt-spray, and dimensional inspection. Testing procedures can be defined according to cable construction, operating depth, voltage rating, mechanical requirements, and applicable standards. →View the Test Equipment in Use
Ordering Information
Standard Lead Time: 5-8 weeks after order confirmation
Customization: Fully supported
