Core Functional Modules and Key Considerations for ROV umbilical cable design

Core Functional Modules and Key Considerations for

ROV umbilical cable design

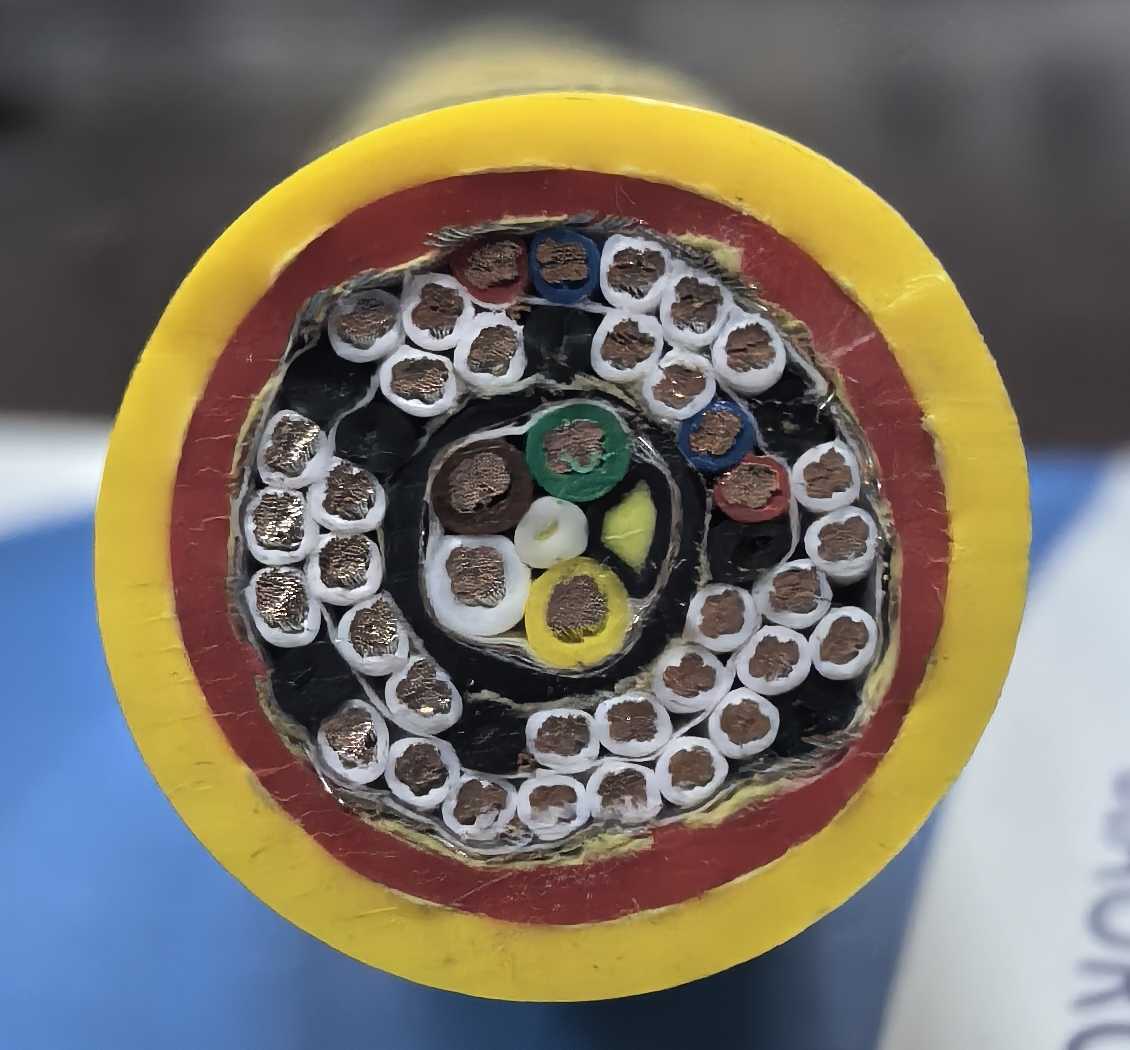

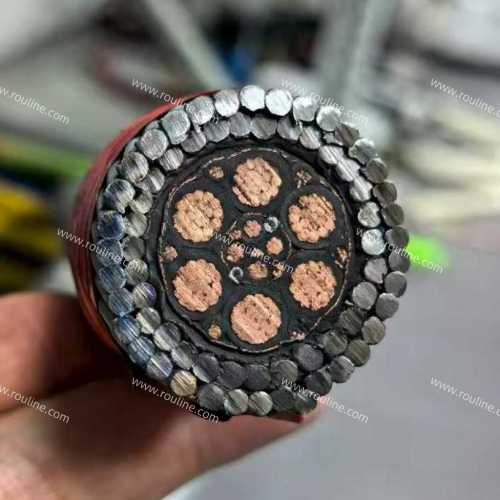

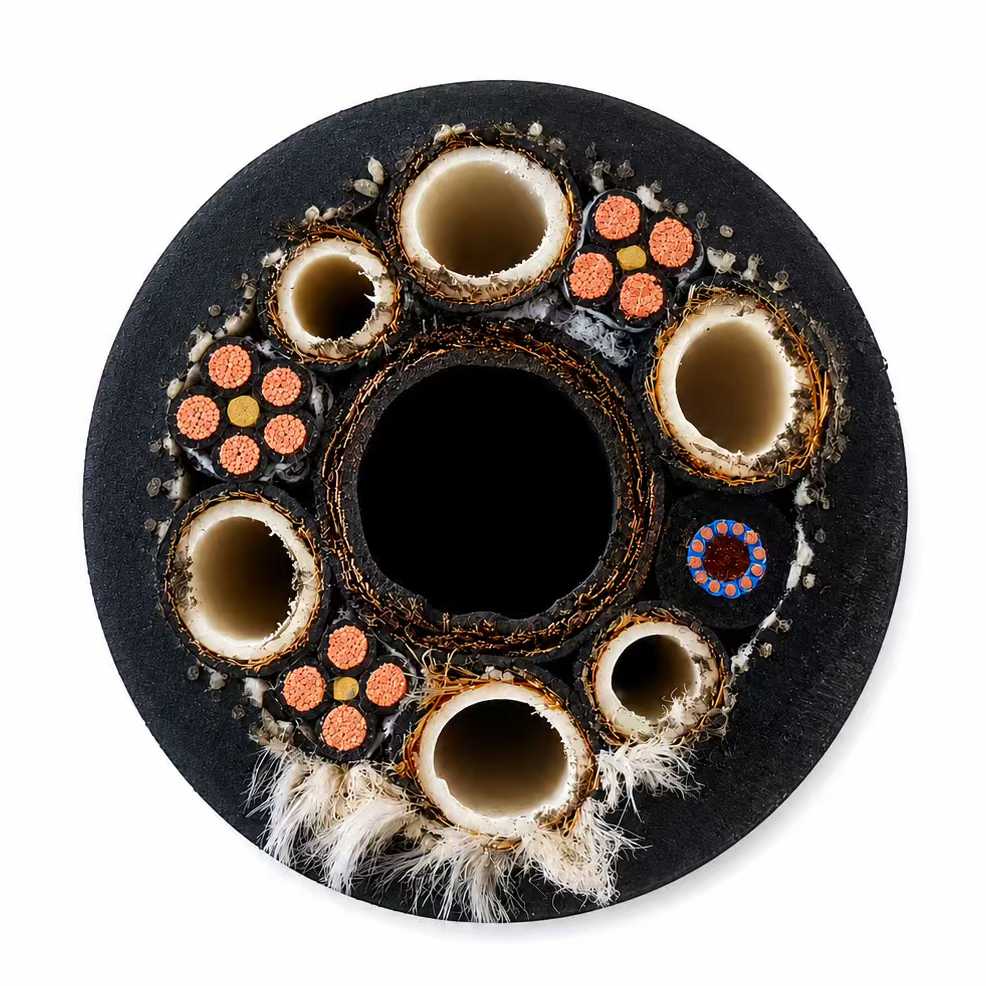

armored ROV umbilical cable manufactured by RouLine.jpg ROV umbilical cable manufactured by RouLine.jpg ROV umbilical cable with Hydraulic line manufactured by RouLine.jpg

↗Learn more about the ROV umbilical cables manufactured by RouLine



ROV Umbilical Cable Construction:

Three Core Functional Models





Electrical Conductors:

Medium/High Voltage AC or DC power to supply subsea pumps, compressors, valves, and other equipment. The design of these conductors depends on the voltage rating (typically Low Voltage such as 400V/690V, Medium Voltage like 3.3kV/6.6kV/11kV, or even higher), current capacity, and phase configuration (AC or DC). The conductors must utilize special insulation materials (e.g., XLPE, EPR) and a watertight structure to withstand the long-term high-pressure subsea environment.



Fiber Optic Units:

Single-mode/Multi-mode fibers for high-speed data/video transmission and real-time control signal communication.



ROV Umbilical Cable with Tubes:

Hydraulic Lines: Transmit hydraulic power to operate subsea valves and actuators.

Chemical Injection Lines: Deliver corrosion inhibitors, hydrate inhibitors (e.g., methanol), demulsifiers, etc., to ensure flow assurance.

Gas Lift/Injection Lines: Used for enhanced oil recovery.




How to Customize a ROV Umbilical Cable?



Step 1: ROV umbilical cable engineering

Define: Water depth, route length

Determine: Required functional types and quantities (number of electrical, optical, and fluid conduits; tube diameters; pressure ratings).

Analyze: Environmental loads (waves, currents, seabed topography, temperature, corrosivity), installation method (cable-lay vessel, tensioner requirements), and operational conditions (dynamic fatigue, hydrostatic pressure, mechanical wear).



Step 2: ROV umbilical cable construction

Structural Design: Determine the arrangement of components (helically stranded, parallel), armor layers (for tensile, compressive, and torsional strength), and sheathing materials (for corrosion, abrasion, and hydrogen-induced cracking resistance).  Consider requirements such as flame retardancy and longitudinal water blocking.

Analyses: Perform mechanical analysis (tension, bending, fatigue), thermodynamic analysis (effect of electrical conductor heating on fluids and fibers), and fluid dynamics analysis (vortex-induced vibration during installation and operation).



Step 3: Material Selection & Manufacturing

Conductor material (copper, aluminum), fiber optic type, steel tubes (carbon steel, duplex/super duplex stainless steel), polymer sheaths (HDPE, XLPE, polyamide), armor wires (galvanized, phosphatized).

Manufacturing processes: seamless welding of steel tubes, redundant protection for fibers, and precise control during stranding/laying up of layers.



Step 4: Testing & Verification

Factory Acceptance Testing: Electrical tests (voltage withstand, partial discharge), hydraulic tests (pressure, leakage), and mechanical tests (tension, bending, fatigue).



Step 5: Installation, Operation, Maintenance & Decommissioning

Briefly mention the criticality of installation and the concept of predictive maintenance based on monitoring data.




For a detailed design guide or preliminary technical discussion, please feel free to contact us via email at:inquiry@rouline.com
