Abstract: This article aims to provide engineering and procurement professionals with a comprehensive overview of reeling cable. It systematically analyzes the core design principles, key performance parameters, and critical selection and application points for extreme operating conditions such as in port machinery and mining equipment, to aid in enhancing equipment reliability and safety.

1. Introduction: What is a reeling cable?

A reeling cable is a specialized cable designed for moving equipment requiring frequent cable payout and retrieval. It must not only transmit power or signals but also maintain stability under bending, torsion, tension, abrasion, and complex environmental stresses. Its performance directly impacts the uptime and safety of critical equipment like port cranes, mining machinery, and automated warehousing systems.

2. Core Design Features and Technical Requirements

To meet harsh operating conditions, reeling cables integrate multiple key technologies:

High Mechanical Flexibility: Uses finely stranded oxygen-free copper conductors with optimized lay designs, combined with highly elastic polymer insulation (e.g., TPE, PUR), to prevent conductor breakage and insulation cracking during repeated flexing.

Enhanced Stress-Resistant Design:

Anti-Twist: For rotational applications, specialized core construction and armor are used to prevent cable twisting.

Anti-Tensile: Integrated galvanized steel wire ropes or aramid fiber strength members absorb tensile forces from equipment weight and motion.

Abrasion Resistance: Outer jackets made from highly wear-resistant materials (e.g., PUR), often with added reinforcement at critical wear points.

Comprehensive Environmental Endurance:

Oil/Chemical Resistant: Jacket materials must be oil resistant.

Weather Resistance: Includes UV stabilizers to prevent sunlight degradation; features ozone and moisture resistance.

Wide Temperature Range: Maintains flexibility across a broad temperature spectrum, typically from -40°C to +90°C higher.

Optimized Electrical Performance:

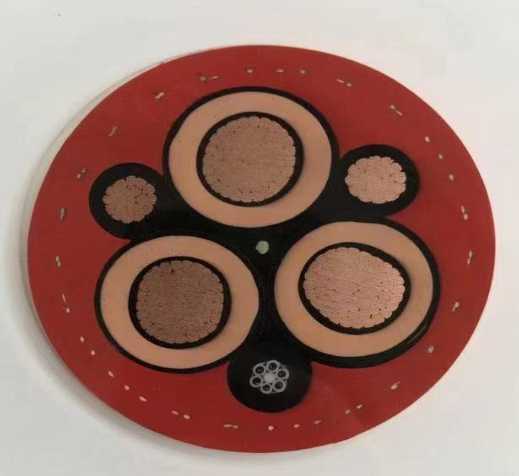

Drive Compatibility: For inverter-driven motors, cables must possess inverter-load capability. Their insulation system must withstand high-frequency pulse voltages to prevent premature failure from corona discharge.

Effective Shielding: Employs copper braid or aluminum-polymer composite tape shielding to effectively suppress electromagnetic interference, ensuring signal integrity and reducing motor noise.

3. Key Parameter Interpretation and Selection Guide

Selection must strictly align the following parameters with actual working conditions:

Electrical Parameters:

Rated Voltage (e.g., 0.6/1 kV) must match system voltage.

Current-carrying capacity under specific ambient temperatures.

Mechanical Parameters:

Minimum bending radius guides installation to prevent mechanical damage.

Torsion angle and cycle count are core indicators for rotational applications.

Travel length and acceleration determine the cable's mechanical service life.

Environmental Compatibility:

Clearly define exposure to media (oils, acids/alkalis), outdoor conditions, and temperature range.

4. Typical Industrial Application Scenarios

 Ports & Material Handling: Power supply and control systems for container ship-to-shore cranes, rubber-tired gantry cranes, and gantry cranes. Cables require salt spray and UV resistance.

Mining & Quarrying: Power shovels in open-pit mines, underground shearers, and conveying systems. Demand extremely high abrasion, crush, and flame-retardant properties.

Metallurgy & Casting: Cables for ladle cars, continuous casters, and blast furnace systems must withstand extreme heat, metal dust, and oil exposure.

Petrochemical & Energy: Loading arms, construction machinery. Require resistance to hydrocarbon-based oils/greases and may need explosion-proof specifications.

5. Conclusion

Selecting the correct reeling cable is a comprehensive decision involving electrical engineering, materials science, and mechanical design. It is a critical component ensuring continuous operation of equipment under high dynamic stress. Technicians and purchasers should base their decisions on a analysis of operating conditions, engage in detailed communication with suppliers, and consider the total cost of ownership.
