Flat Festoon Cable 0.6/1kV
Flat Festoon Cable 0.6/1kV
A weather-resistant flat festoon cable designed for crane equipment, ground conveyor systems, and trolley control units. It ensures reliable operation in harsh environments such as construction sites, port facilities, offshore platforms, and similar demanding applications.
This weather-resistant crane flat festoon cable and port crane cable features bare copper. It is also a reliable high salt spray cable for coastal and marine environments, a flat festoon cable for VFD systems, and compatible with standard festoon systems (C‑track, I‑beam).
Key Features
High flexibility
Small bending radius
UV, Ozone and Hydrolysis Resistant
resistance to abrasion, oils, and mechanical stress

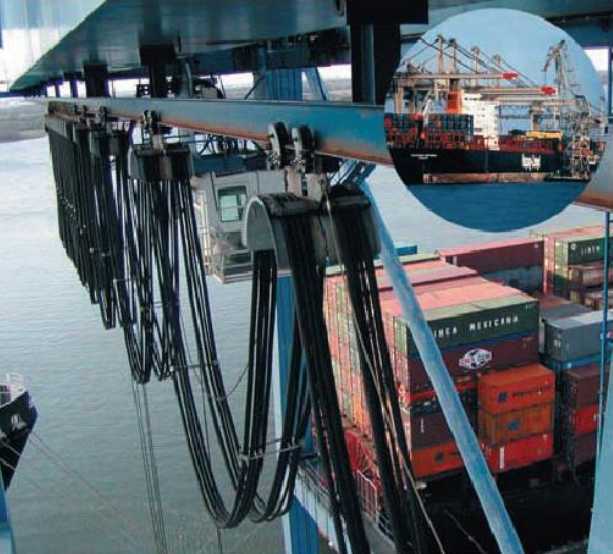

For outdoor environments, including seaside locations
Specifications
Voltage Rating: 0.6/1kV
Conductor: Class 5 Copper, meet standard IEC60228
Insulation: EPDM
Core Structure: 3 cores plus a green/yellow earth core,
arranged in parallel
Outer Sheath: CR
Color: Black
Maximum Travel Speed: 180M/minute
Working Temperature: Flexible installation: -25℃~70℃
Fixed Cable Installation-30℃~80℃
Test Voltage: 3500V
Mini. Bending Radius: 7×Cable Outer Diameter
Flame Retardant: IEC60332-1
Standard: VDE0250P812
VDE0250P813GB/T5013
CE, ROSH
Number of cores × cross section | Outer diameter mm | Copper Weight kg/km | Cable Weight kg/km |
|---|---|---|---|
| 4×1.5 | 17×7.5 | 55 | 180 |
| 6×1.5 | 25×9 | 82 | 314 |
| 8×1.5 | 34×9 | 110 | 420 |
| 4×2.5 | 19.7×7.8 | 88 | 262 |
| 6×2.5 | 29.5×9.5 | 131 | 418 |
| 8×2.5 | 37×9.5 | 175 | 560 |
| 12×2.5 | 60×10 | 266 | 890 |
| 4×4 | 25.1×9.1 | 147 | 389 |
| 4×6 | 27.6×10.5 | 218 | 510 |
| 4×6 | 40×11 | 326 | 707 |
| 4×10 | 35.5×13 | 370 | 777 |
| 4×16 | 41×13.5 | 594 | 1076 |
We offer solutions tailored to specific customer requirements.
Applications
Port Crane Systems
Our crane cables are engineered for demanding applications such as port cranes, STS, MHC, RMG, container handling systems, and material handling equipment. Depending on the movement and operating conditions, solutions include reeling, festoon, and spreader cable constructions.
→ Explore Port Crane Cable Applications
Case Study
A custom reeling cable solution engineered for Tianjin Port crane system, power transmission, high dynamic flexibility, tensile strength, and marine environmental resistance.
Reeling Cable Project for Tianjin Port
Quality Testing & Control | Manufacturing Process |
Manufacturing Process
Our industrial cables are manufactured through controlled processes covering extrusion, reinforcement, assembly, and final inspection. Below are examples of key manufacturing stages that demonstrate our production capabilities and quality control processes.
→Cable Core Assembly Process →Wire Stranding Process →Kevlar braiding process
Test Equipment
Ordering Information
Customization: Fully supported
MOQ: project-based negotiation
Standard Lead Time: 3-7 weeks after order confirmation
