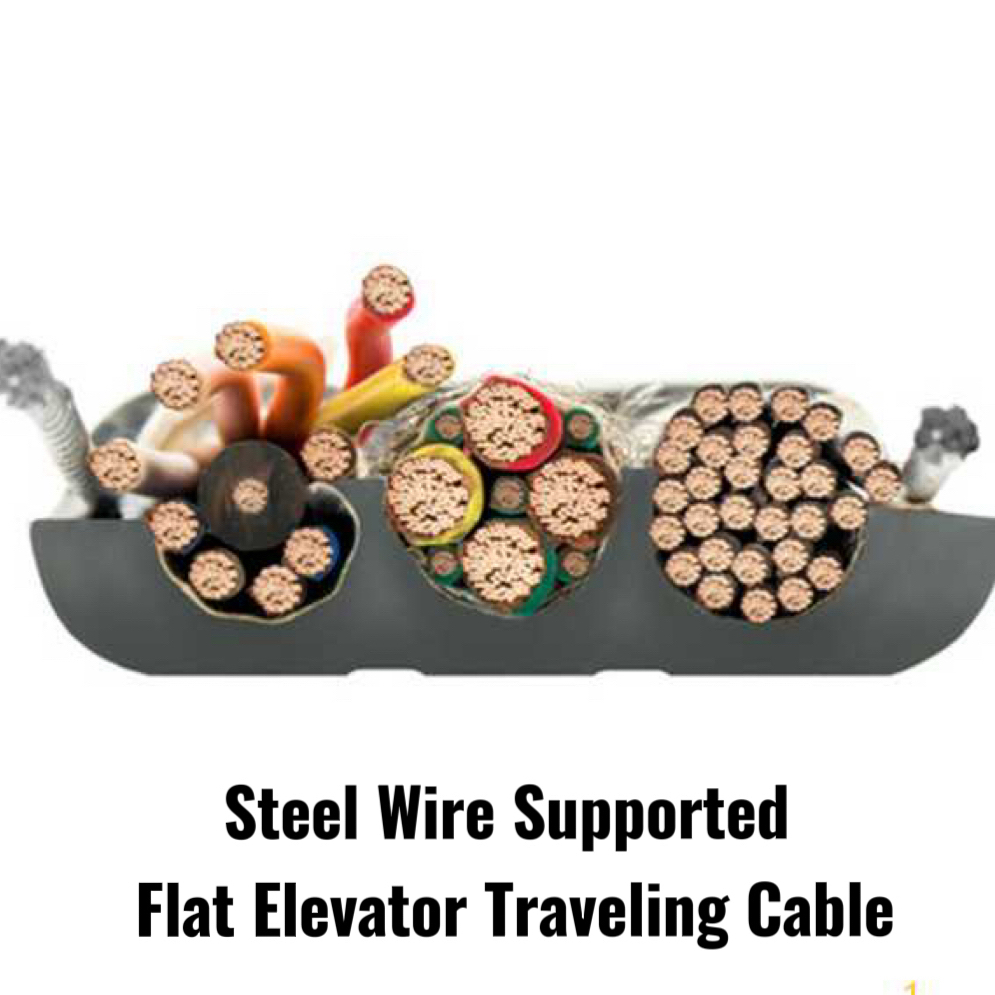

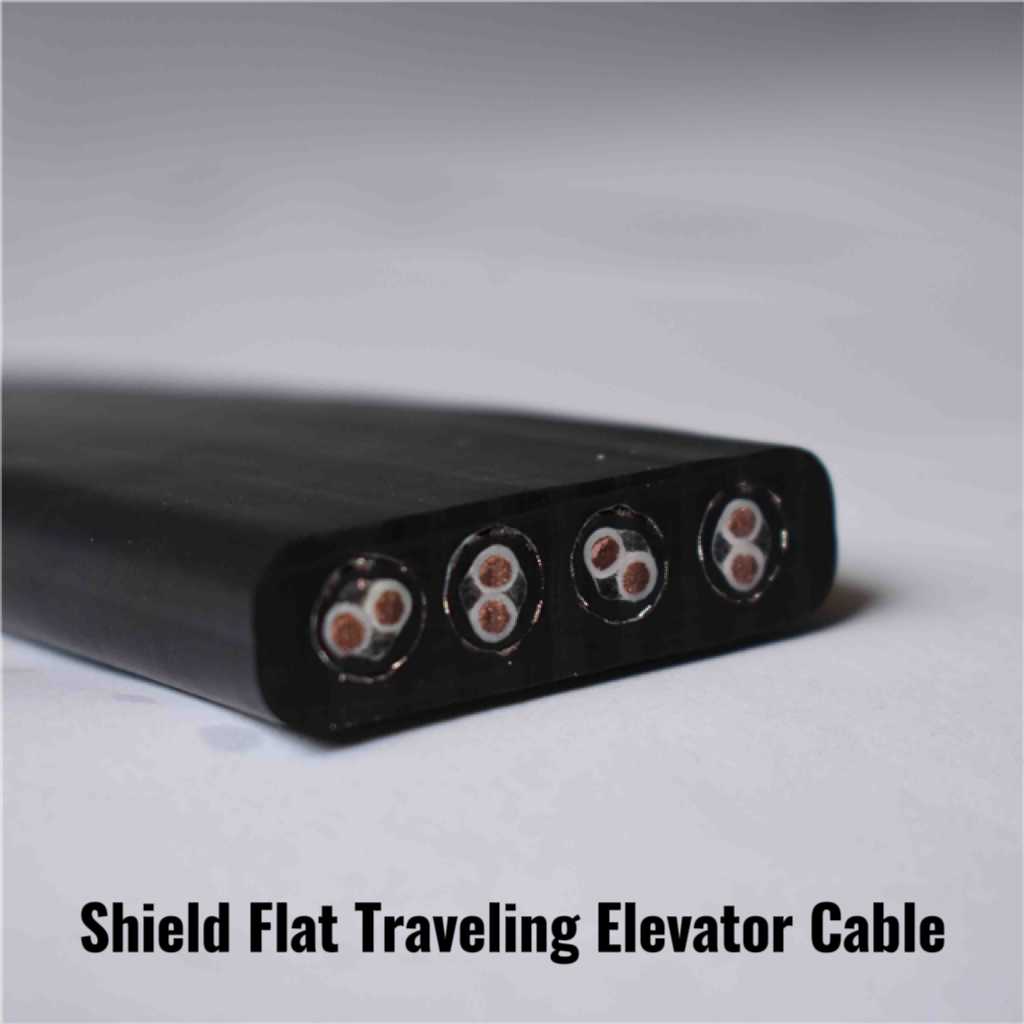

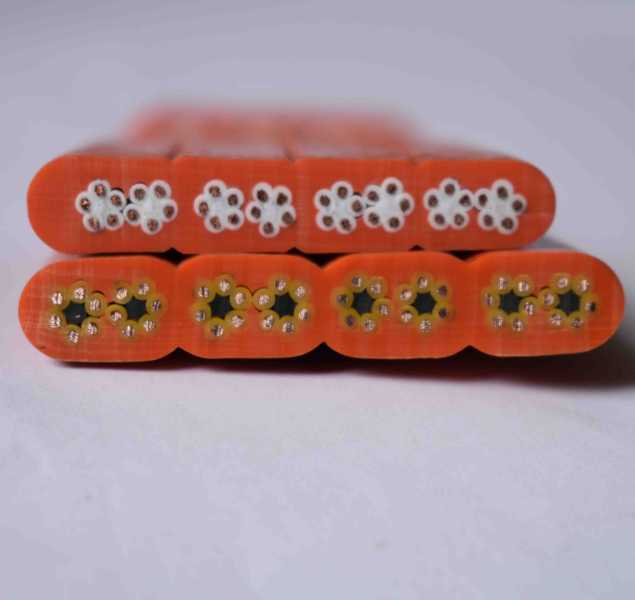

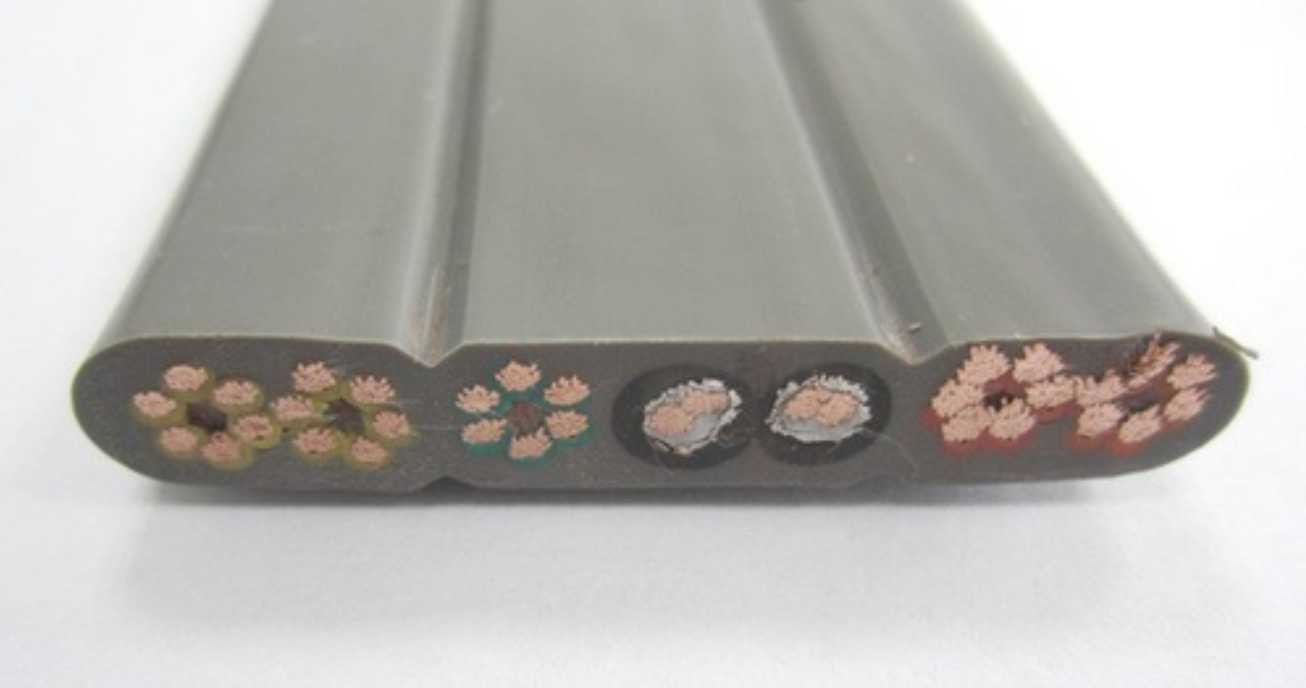

Flat Elevator Traveling Cable
Flat Elevator Traveling Cable
Standard Version
The Flat Elevator Traveling Cable, also called Flat Lift Traveling Cable, is specifically designed for vertical lifting systems and is suitable for elevators, lifts, hoisting equipment, and other applications requiring frequent bending and movement. This series of cables utilizes a flame retardant elevator flat cable with fiber optic construction, offering excellent tensile strength and wear resistance. As a PUR elevator cable for hoistway vertical travel, it maintains stable signal transmission performance and electrical conductivity during long-term reciprocating motion. Additionally, the SDI video integrated lift cable configuration supports high-definition video transmission alongside power and control signals.
Key Features
Conductor resists bending and flexing, suitable for continuous dynamic use environments
Service life: up to 5 years for PUR sheath, 3 years for PVC sheath
Flame-retardant characteristic, complies with IEC60332-1 standard
Excellent overall flexibility, easy to install in narrow hoistways
Outstanding tensile and wear resistance, suitable for high-frequency operation scenarios
Insulation layer contains over 45% rubber content, effectively improving insulation flexibility and service life
Copper content not less than 99%, using fine oxygen-free copper for excellent conductivity
High tensile strength and tear resistance, capable of withstanding mechanical shocks from elevator starting and stopping
Flexible and bend-resistant design adapted to long-term reciprocating bending motion
Good resistance to oil, abrasion, cold, and weather conditions, suitable for indoor, outdoor, and semi-outdoor environments
This cable supports on-demand integration of:
Optical fiber unit
Signal transmission
SDI video transmission
One cable transmits power, control, data, and HD video. Reduces hoistway cabling and installation complexity. Suitable for elevator systems with integrated monitoring or communication requirements.
Specifications
Voltage Rating: 0.6/1kV
Conductor: Fine oxygen-free copper wire, complies with VDE0295 Class 5 or Class 6, also meets IEC60228 Class 5 requirements
Insulation Material: PVC

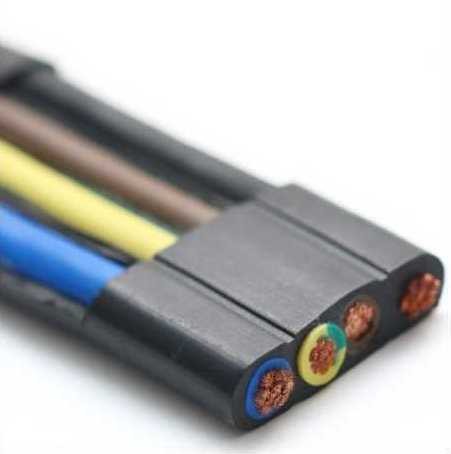

Core Identification: Black cores with continuous white numbers; includes a G/Y protective earth core from 3 cores upwards.
Outer Sheath: PUR / PVC
Color: Black (RAL9005)
Working Temperature: Reel-based Cable Installation-30℃~80℃
Fixed Cable Installation-40℃~90℃
Test Voltage: 3500V
Mini. Bending Radius: 10×Cable Outer Diameter
Flame Retardant: IEC60332-1
Standard: VDE0250P813 MT818
CE, ROSH Compliant
Under standard conditions: PUR cables achieve >5 million bending cycles (approx. 5-year service life);
PVC cables achieve approx. 3 million cycles (approx. 3-year service life).
Actual life varies with frequency, environment, and maintenance.
We offer solutions tailored to specific customer requirements.
Applications
This series of elevator flat cables is designed for typical elevator applications requiring long-term bending and tensile strength.

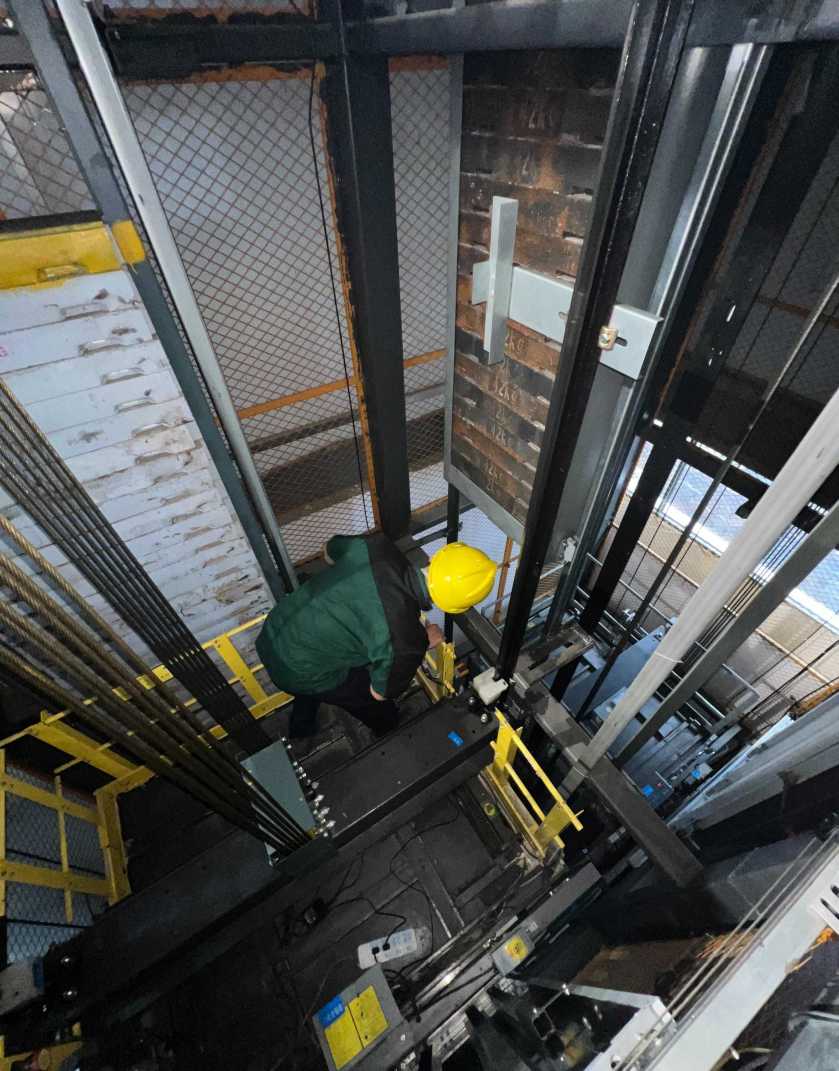

Passenger & Freight Elevators: vertical hanging travel in hoistways
Escalators & Moving Walkways: continuous motion with oil/abrasion resistance
Hoisting Equipment & Lifts: overhead cranes, gantry cranes, material lifts
Temporary Lifting Systems: flame retardant, weather resistant, mechanical stress resistant
Integrated Communication & Monitoring: fiber or SDI lines for surveillance, remote O&M, multimedia
