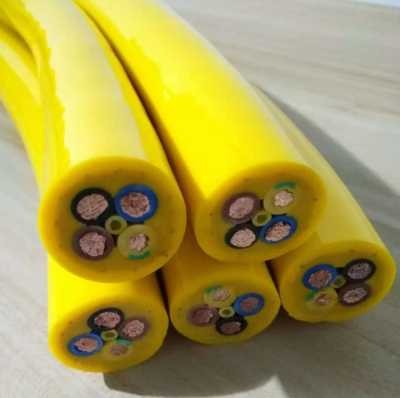

Arctic Grade Crane & Reeling Cables
Arctic Grade Crane & Reeling Cables
0.6/1kV | -40°C to -60°C Cold Flexibility
Key Features
1. Extreme Low-Temperature Flexibility & Crack Resistance
TPEE insulation maintains dielectric integrity and flexibility down to -60°C to -80°C;
TPE outer jacket remains pliable down to -40°C to -50°C
2. Superior Mechanical Strength for Dynamic Crane Operations
Designed to withstand the constant reeling of crane and gantry applications.
The robust TPE jacket offers excellent tear resistance against abrasion from ice and rough terrain.
Engineered for millions of bending cycles under cold stress.
3. Enhanced Environmental Adaptability
Resistance to aging, UV radiation
Resistance to industrial oils and grease
Preventing insulation failure caused by moisture ingress from ice, snow, or meltwater
Ensuring reliable operation in snowy and icy conditions.
Specifications
| Rated Voltage | 0.6/1kV (Suitable for AC rated voltage applications) |
| Conductor | bare copper (tinned copper optional) , meet standard VDE 0295/Class 5 or Class 6 flexibility. |
| Insulation | TPEE (Thermoplastic Polyester Elastomer). Color-coded or numbered cores for easy identification. |
| Stranding | Cores are optimally stranded to relieve torsional stress. |
| Inner Sheath / Filler | Optional cold-resistant filler to maintain circularity and stability. |
| Outer Jacket | TPE (Thermoplastic Elastomer) compound, high abrasion resistance, oil-resistant. |
| Temperature Rating | Operating Temperature (Mobile): -40°C to +90°C |
| Operating Temperature (Static/Protected): -50°C to +90°C | |
| Mini. Bending Radius | 7.5 x Cable Diameter (Fixed installation) |
| Test Voltage | 2500V - 3000V |
Number of cores x cross section | Outer diameter mm | Copper Weight kg/km | Cable Weight kg/km |
|---|---|---|---|
| 3×35+3×6 | 52 | 1205 | 3710 |
| 3×38+3×6 | 52 | 1292 | 3913 |
| 3×50+3×10 | 56 | 1760 | 4626 |
| 3×70+3×16 | 60 | 2514 | 5808 |
| 3×95+3×16 | 66 | 3254 | 7091 |
| 3×120+3×25 | 70 | 4246 | 8530 |
Customization Available, Contact Us
Request a Free Sample, you only pay the shipping.
Applications
Heavy Industrial Cranes | Power and control connections for bridge cranes, gantry cranes, and overhead cranes in unheated workshops and outdoor yards.
Port & Shipyard Machinery | Ideal for container gantries and ship loaders operating in cold coastal environments.
Mining & Excavation | Power supply for excavators, conveyors, and drilling rigs in open-pit mines in northern climates.
Metallurgical Plants | Suitable for use in environments where exposure to low temperatures and oils environment.
Winter Outdoor Logistics | Power supply for automated warehouses, cold storage facilities, and outdoor handling equipment.
RouLine Arctic Grade Crane & Reeling Cable is engineered for the harshest cold environments, delivering a critical balance of extreme low-temperature flexibility, superior abrasion resistance, and high mechanical strength through advanced TPE/TPEE material formulation and robust structural design. As a premier choice among cold-resistant reeling cables, it ensures reliable power transmission and control signal integrity even in sub-zero conditions down to -60°C.
Specifically designed for mobile equipment in northern climates, this cable eliminates the common issue of standard cable jackets becoming brittle and cracking in temperatures as low as -40°C to -50°C. Deployed extensively on overhead cranes, gantries and port machinery, it ensures uninterrupted power supply and operational safety even in extreme freezing conditions.
