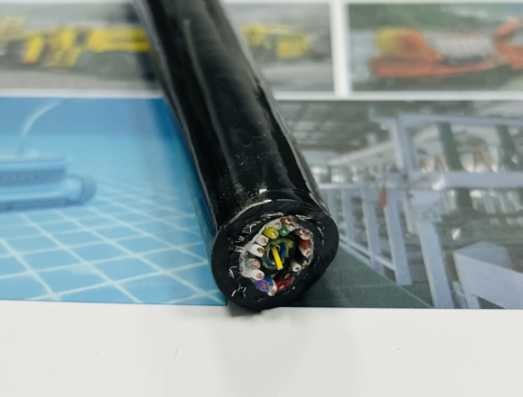

RouLine Arctic Grade Instrumentation Cable is engineered as a signal integrity cable for extreme cold, ensuring stable data transmission even at -60℃. With TPEE insulation and optimized stranding design, it delivers low temperature cable with stable signal transmission performance, maintaining dielectric properties and impedance stability in polar environments. Field-tested in Antarctic projects, this cold-resistant instrumentation cable with low signal loss guarantees reliable operation for critical research equipment.

Deployed in Antarctic seawater by a Polar Research Project, this low-temperature underwater cable has proven its freeze-thaw resistance and signal stability after prolonged exposure in freezing saltwater environments.

Key Features

1. Low Temperature Flexibility & Cold Impact Resistance

Arctic Grade Material Formulation: Utilizes specialty silicone rubber and modified polyolefin insulation to maintain superior flexibility from -40°C down to -60°C, eliminating stiffening or brittle fracture.

Flexible for Dynamic Cold Environments: Achieves a minimum bending radius as low as 3x cable OD (dynamic conditions) and withstands over 5 million cold-bending cycles, effectively resolving issues of jacket cracking and insulation fracturing in extreme cold.

2. Low Attenuation Signal Transmission in Extreme Cold

Stable Dielectric Performance: Optimized conductor stranding and insulation structure ensure stable dielectric properties at low temperatures. At -40°C, signal attenuation is ≤0.5dB/100m (1kHz), with impedance fluctuation controlled within ±5Ω.

High-Fidelity Signal Integrity: Guarantees low-distortion, low-latency transmission for both analog and digital signals in ultra-low temperature environments.

3. Exceptional Weatherability & Freeze-Thaw Resistance

Extreme Freeze-Thaw Endurance: Engineered to withstand over 1000 repeated freeze-thaw cycles from -40°C to -60°C with no performance degradation.

Ice and Moisture Barrier: Features a jacket with ultra-low water absorption (≤0.1%), effectively preventing insulation failure caused by moisture ingress from melting ice and snow. Offers excellent resistance to ice, frost, and rime.

4. High Mechanical Strength & Robust Reliability

Reinforced Structural Integrity: Combines ultra-fine stranded conductors with a cold-resistant strengthening structure to ensure tensile strength ranging from 100 to 2000KG at low temperatures and tear strength ≥25N/mm².

Resistance to Complex Stresses: Withstands frequent dragging, bending, vibration, and impact in cold environments without conductor breakage or layer separation.

5. Comprehensive Environmental Adaptability

Multi-Stress Tolerance: Beyond ultra-low temperature performance, it exhibits excellent resistance to aging, salt spray (tested to ≥2000 hours), oil, and UV radiation, making it ideal for complex and harsh environments.

Technical Specifications

Conductor: Stranded bare copper, compliant with VDE 0295/Class 5 or Class 6.

Insulation: PVC blend and polyimide film additive for low-temperature toughness and low dielectric loss (tgδ < 10⁻⁵).

Design: Torsion-free flexible anti-twist construction with cores or units stranded around a central support element.

Fillers & Jacket: Filled with cold-resistant polyester yarn or low-dielectric loss foamed material for stress relief. Jacket reinforcement options include galvanized steel wire rope, PP rope, or Kevlar rope.
Jacket: The cable features a seamless, extruded LSZH jacket engineered to enhance product airtightness and moisture resistance. This construction reinforces the structural integrity of the cable and provides effective protection against moisture ingress.

Rated Voltage: 300/300V for cross-sections < 0.5mm²; 300/500V for cross-sections ≥ 0.5mm².

Test Voltage: 2000V.

Temperature Rating: Customizable for operation down to -60°C.

Bending Radius: 7.5 x Cable Diameter.

Applications

Polar Scientific Research: Successfully deployed in Antarctic projects, ensuring reliable operation of critical equipment under extreme polar conditions.

Cold Region Infrastructure: Ideal for construction and long-term outdoor operations in extreme cold climates.

Cold Chain Logistics: Suitable for reliable connections in cold storage and refrigerated transport.

Aerospace & Defense: Meets the high-reliability and wide-temperature requirements of specialized equipment.

Outdoor Installations: Perfect for communication, security, and energy infrastructure in severe cold regions.
