Low Voltage Reeling Cable, 0.6/1kV
Low Voltage Reeling Cable, 0.6/1kV
Used in cranes, bulk material handling systems, and other mobile industrial equipment, Low Voltage Reeling Cables provide reliable power transmission and control connections during repeated cable winding and unwinding. Our 0.6/1kV reeling cable solutions are designed for dynamic industrial applications requiring flexibility, dependable electrical performance, and customized cable configurations.
As a low voltage reeling cable manufacturer, RouLine provides custom designs, including flexible low voltage reeling cable constructions and low voltage reeling cable with power and control cores integrated into a single cable. Core configurations, conductor cross-sections, insulation, and outer sheath materials can be tailored to equipment requirements, reeling speed, travel distance, and operating conditions.
Custom Cable Solutions | Flexible MOQ | Fast Lead Time |
Key Features
Hybrid Cable Power, Control, Optical Fiber (3in1)
High Flexibility Continuous reeling & bending
Harsh Environmental Resistance UV, ozone, hydrolysis & moisture resistant, resistance to abrasion, oils,
Mechanical Strength Resistant to tensile stress, pressure & abrasion
Marine Ready Saltwater & corrosive coastal environments
High Travel Speed Up to 120 m/min
High Tensile Capacity Approx. 15 N/mm²
Corrosion Resistant Designed for harsh, humid environments
Certified Quality VDE 0250 P813 & MT818
Specifications
Parameter | Specification |
Voltage Rating | 0.6/1 kV |
Conductor | Class 5 Copper, compliant with IEC 60228 |
Insulation | Inner Semiconducting Layer + Specially Formulated EPR (Ethylene Propylene Rubber) + Outer Strippable Semiconducting Layer |
Grounding Core | Semiconductor Material |
Control Core | TPEE, 1.5–2.5 mm², 2–6 Cores |
Core Structure | 3+3 (Optimal Lay Length Stranding) |
Inner Sheath | TMPU |
Torsion-Resistant Layer | Aramid Fiber Braid |
Outer Sheath | TMPU |
Color | Red |
Optical Fiber | Single-Mode E9/125; Multi-Mode 62.5/125 |
Working Temperature | Reel-Based Installation: −30°C to +80°C; Fixed Installation: −40°C to +90°C |
Test Voltage | 21 kV |
Minimum Bending Radius | 12 × Cable Outer Diameter (OD) |
Flame Retardant | IEC 60332-1 |
Standard | VDE 0250 P813; MT 818 |
Compliance | RoHS |
Number of Cores × Cross Section | Outer Diameter (mm) | Copper Weight (kg/km) | Cable Weight (kg/km) |
3×35+3×6 | 52 | 1205 | 3710 |
3×38+3×6 | 52 | 1292 | 3913 |
3×50+3×10 | 56 | 1760 | 4626 |
3×70+3×16 | 60 | 2514 | 5808 |
3×95+3×16 | 66 | 3254 | 7091 |
3×120+3×25 | 70 | 4246 | 8530 |
We offer solutions tailored to specific customer requirements.
Applications
Low voltage reeling cables are used in industrial cable reel systems that require reliable electrical connections during equipment movement and repeated winding and unwinding. Typical applications include overhead and gantry cranes, bulk material handling systems, stacker-reclaimers, and automated material handling equipment operating with low voltage power supply.
Depending on the equipment configuration and operating environment, 0.6/1kV reeling cable solutions can be customized with flexible constructions and combined power and control cores. A low voltage reeling cable with power and control cores can support power transmission and control connectivity through a single cable assembly, where the
electrical and mechanical requirements permit. The following applications illustrate how custom low voltage reeling cables can be configured for different equipment layouts, travel distances, reeling speeds, and operating conditions.

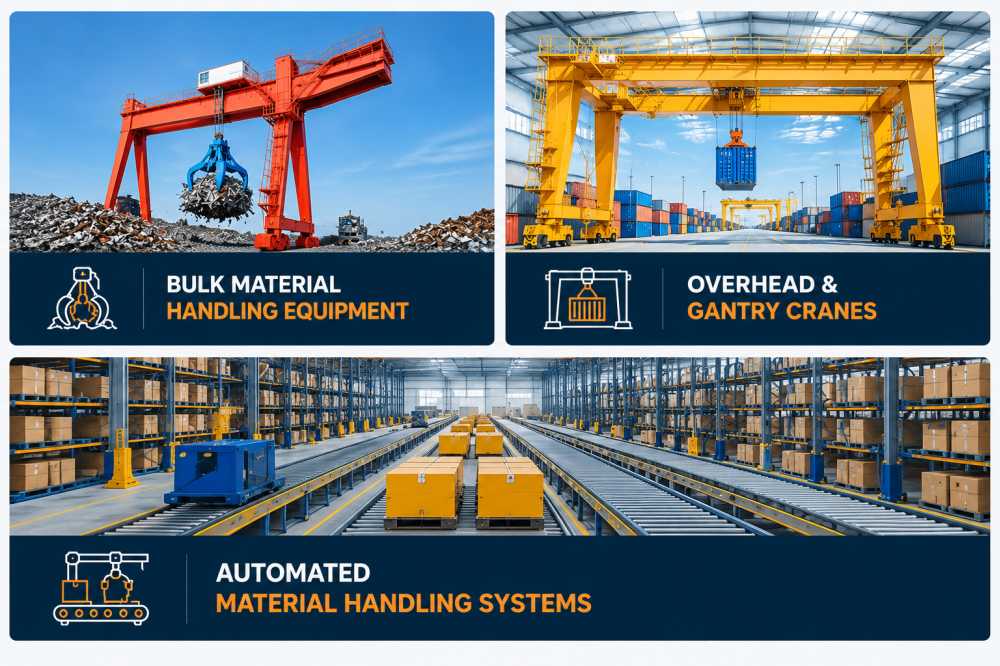

↗ Bulk Material Handling Equipment
↗ Overhead & Gantry Cranes
↗ Automated Material Handling Systems
Quality Testing & Control | Manufacturing Process |
Manufacturing Process
RouLine industrial cable manufacturing process covers conductor preparation, insulation and sheath extrusion, reinforcement, cable assembly, and final testing and inspection. As a custom industrial cable manufacturer, RouLine adapt cable structures, materials, and production processes to meet specific electrical, mechanical, and environmental requirements. The following stages demonstrate our manufacturing capabilities and quality control procedures for reliable industrial cable solutions.
→Cable Core Assembly Process →Wire Stranding Process →Kevlar Braiding Process
Test Equipment
Industrial cables manufactured by RouLine are inspected using dedicated equipment for electrical, mechanical, and environmental testing. Depending on the cable design, testing may include high-voltage testing, insulation and continuity checks, tensile testing, flexing, temperature-humidity, salt-spray, and dimensional inspection. Testing procedures can be defined according to cable construction, operating depth, voltage rating, mechanical requirements, and applicable standards. →View the Test Equipment in Use
Ordering Information
Customization: Fully supported
MOQ: project-based negotiation
Standard Lead Time: 4-7 weeks after order confirmation
Custom Development Works
FAQs
Low voltage reeling cables are used in cranes, bulk material handling systems, and other mobile industrial equipment that requires power transmission during repeated cable winding and unwinding.
2. Can a low voltage reeling cable combine power and control cores?
Yes. A low voltage reeling cable with power and control cores can integrate both functions into one cable construction. Core numbers and conductor cross-sections can be customized to meet equipment requirements.
3. What factors determine the design of a flexible low voltage reeling cable?
Key factors include reeling speed, travel distance, bending radius, winding frequency, tensile stress, and operating environment. These requirements help determine the conductor, insulation, sheath, and overall cable construction.
4. Can low voltage reeling cables be used in stacker-reclaimers and automated material handling systems?
Yes. They can be used in stacker-reclaimers and automated material handling systems when the rated voltage, electrical load, and dynamic reeling requirements match the equipment specifications.
