Reeling Cable, Hoisting, Oil-Resistant, 6/10kV
Reeling Cable, Hoisting, Oil-Resistant, 6/10kV
Engineered for heavy-duty applications, this oil-resistant reeling cable delivers reliable performance under continuous flexing and extreme mechanical stress. Designed for cranes, cable reeling systems, and high-speed conveyors, its TPEE insulation and TMPU outer sheath provide 6/10kV power transmission with superior durability. It is ideal for port cranes, waste handling systems, and mobile equipment as a continuous-flex corrosion resistant cable in challenging environments.
Key Features
Continuous Flex Cable
High mechanical strength drives the performance of this heavy-duty flexible cable, delivering exceptional abrasion, crush, and tensile resistance.
Outstanding oil resistance
High tensile strength, corrosion resistance, and torsion resistance
Corrosion and acid/alkali resistant
Maximum Travel Speed：180M/minute
Maximum Tensile Load：Approximately 15 N/mm² of copper cross-sectional area
Specifications
Voltage Rating : 6/10kV
Conductor: Class 5 Copper, meet standard IEC60228
Insulation : TPEE
Color of Insulation: Black with consecutive numerical numbering on cores; three cores or more include one yellow/green ground core
Core Structure: Layered (optimal lay length stranding)
Inner Sheath: TPE
Torsion-Resistant Layer: Aramid fiber braid
Outer Sheath: TMPU
Color: Black (RAL9005)
Central Reinforcement: Central steel wire rope for enhanced tensile strength
Working Temperature: Reel-based Cable Installation-40℃~80℃
Fixed Cable Installation-50℃~90℃
Test Voltage: 3500V
Mini. Bending Radius: 6×Cable Outer Diameter
Flame Retardant: IEC60332-1
Standard: VDE0250P813 MT818
ROSH
Number of cores x cross section | Outer diameter mm | Copper Weight kg/km | Cable Weight kg/km |
| 3×16+3×(3×1.5)C | 30 | 560 | 965 |
| 4×16+2×(4×1.5)C | 26 | 700 | 840 |
| 4×10+4×4 | 25 | 540 | 875 |
| 18×2.5 | 30.5 | 420 | 1200 |
| 24×2.5 | 32.5 | 560 | 1250 |
We offer solutions tailored to specific customer requirements. Contact Us for Details.
Applications
Suitable for continuous-flex cable reeling systems for heavy-duty machinery
Designed for vertical hoisting cable applications in cranes and lifts
Ideal for high-speed travel cable systems on conveyors and mobile machinery
Engineered for oil-resistant flexible cable in harsh industrial environments

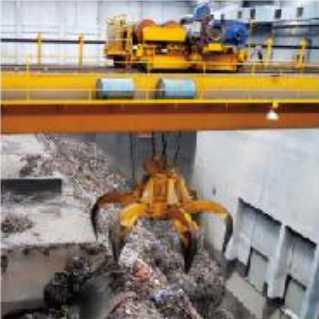

Perfect for high-frequency duty cycle cable in waste handling and recycling cranes
Specified for marine and offshore cable applications such as grab cranes
Built for extreme mechanical stress cable in dry, damp, indoor, and outdoor use
See also:
For specialized needs like high-frequency waste handling crane cables or marine grab hoist power cables, this product offers 3500V withstand voltage, IEC60332-1 flame retardancy, and a 6x diameter bending radius. We provide cable configurations for extreme industrial environments—contact our engineering team for tailored support.
