Sonar Systems
Sonar Cables

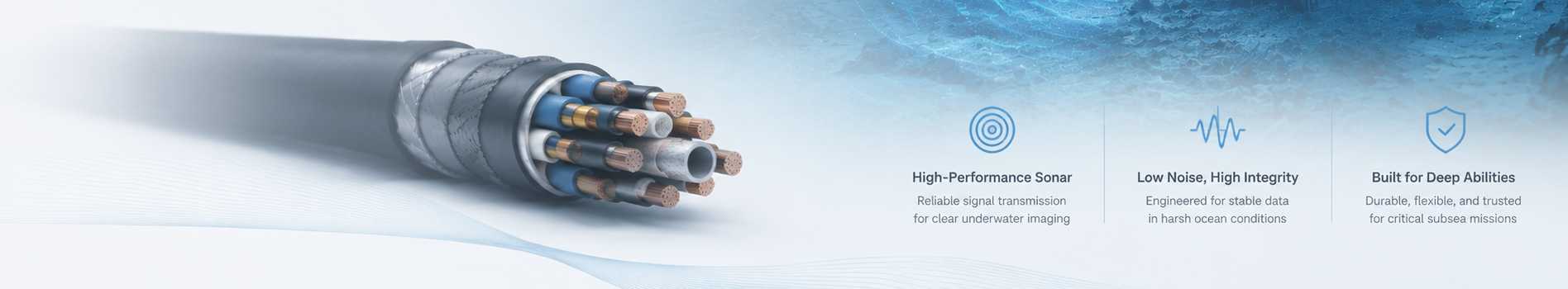

Sonar Cables are specialized underwater cables used to transmit power, signals and data between sonar equipment and marine systems. RouLine designs and manufactures custom sonar cable solutions for underwater acoustic systems, marine monitoring and subsea detection applications, delivering reliable performance in harsh marine environments where flexibility, mechanical strength and signal integrity are critical.
Cable Requirements
Sonar cable solutions require specialized cable structures to ensure reliable signal transmission and acoustic data integrity in demanding underwater environments. Unlike standard underwater cables, custom sonar cables are engineered with optimized shielding, insulation and mechanical protection to minimize interference, reduce signal loss and maintain stable performance during long-distance marine operations.

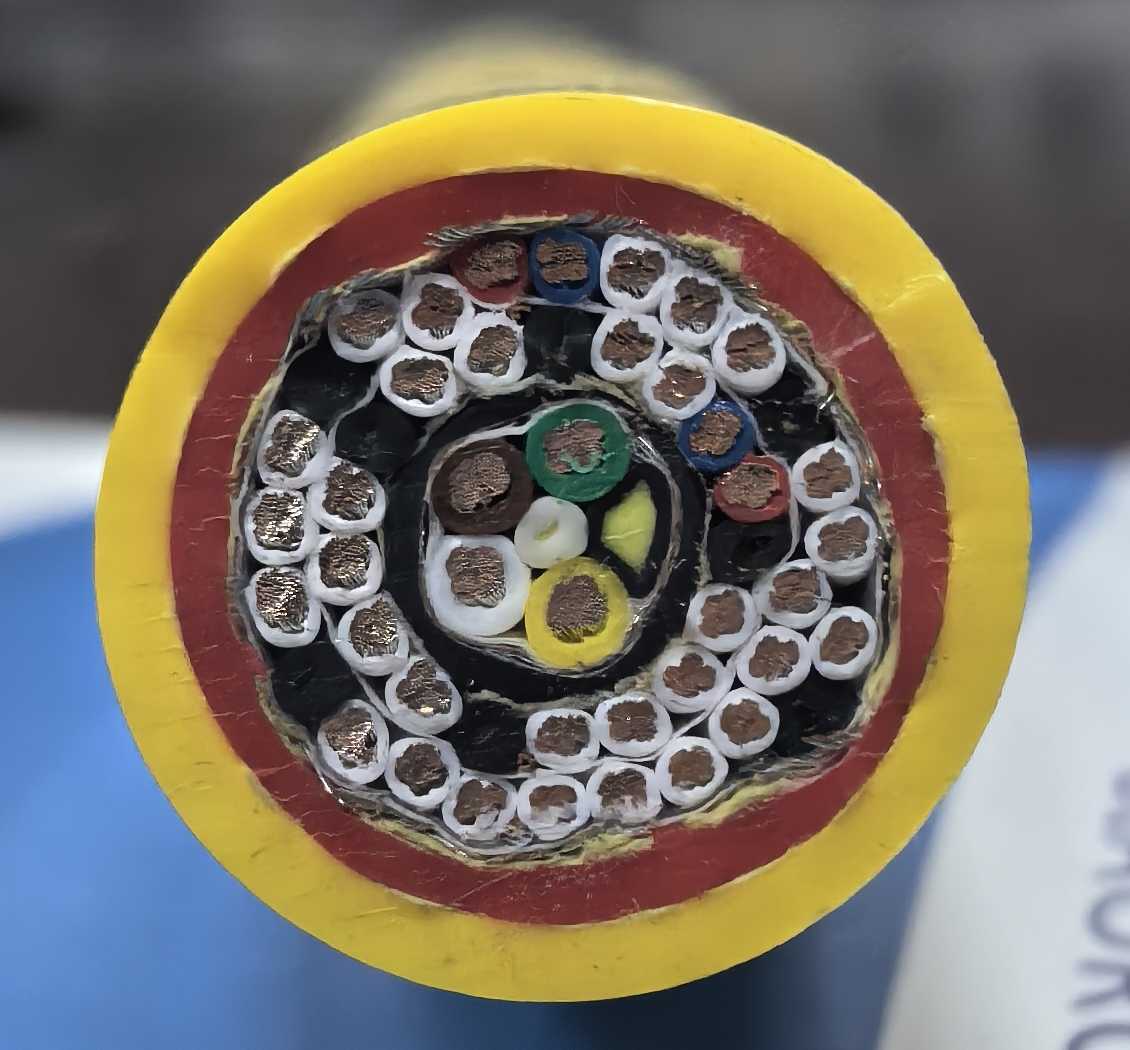

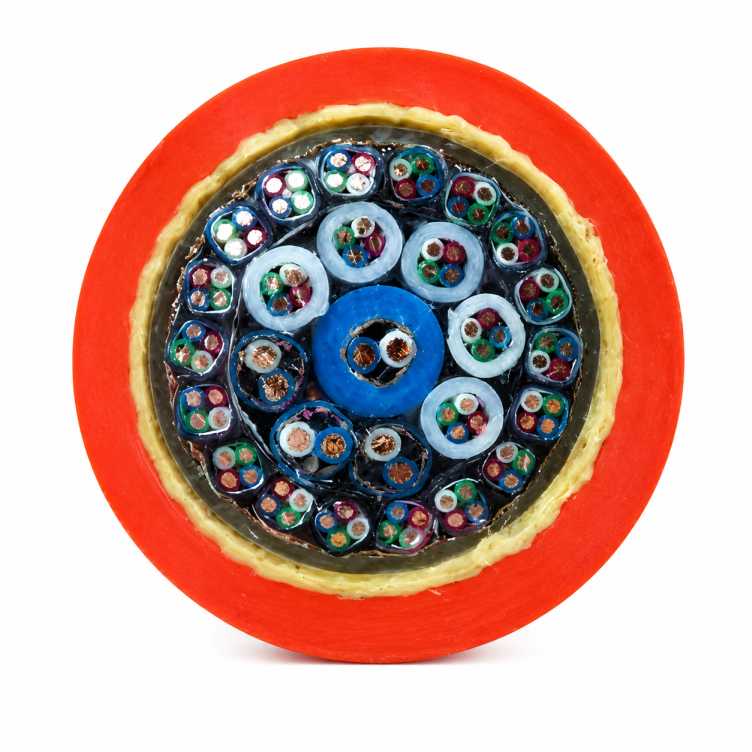

Multi-Core Configuration
↗Multiple signal channels for different sensors
↗Customized conductor arrangement
↗Stranded tinned oxygen-free copper conductors for reliable electrical performance

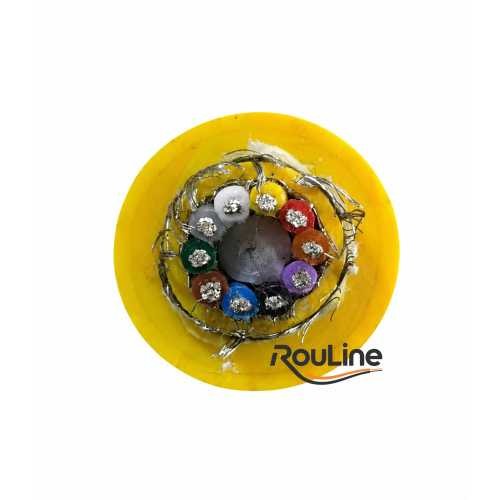

Shielding Structure for Signal Protection
↗Tinned copper wire braided shielding with over 85% coverage density
↗Optional aluminum foil shielding for enhanced interference protection
Cable Solutions
Hybrid Subsea Cable
Suitable for underwater sonar systems requiring integrated power, signal, data, and fiber optic transmission in a single cable.
→ View more about Hybrid Subsea Cable
Subsea Umbilical Cables
Suitable for sonar system involving ROVs, providing combinations of power, control, signal, and communication functions.
→ View more about ROV Umbilical Cables

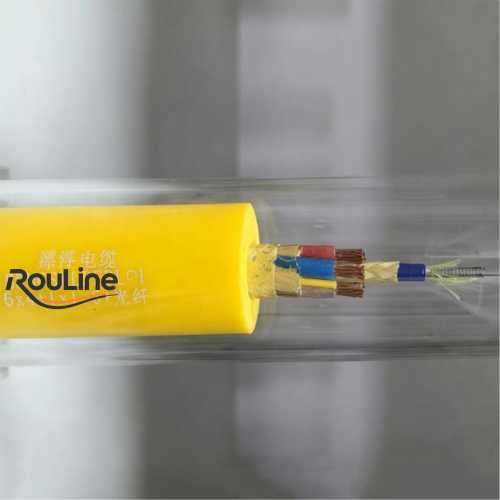

Fiber Optic Subsea Cable
Designed for high-speed underwater communication and long-distance data transmission applications.
→ View more about Fiber Optic Subsea Cable
ROV Tether Cable
Designed for underwater sonar requiring flexible deployment, reliable power transmission, and stable communication connections.
→ View more about ROV Tether Cable
Custom Cable Engineering Capability
Custom Cable Design
Cable structures are engineered according to application requirements, including electrical configuration, mechanical loads and installation conditions.
Material Selection
Materials are selected based on environmental factors such as seawater exposure, temperature, abrasion and flexibility requirements.
Manufacturing & Assembly
From conductor preparation and insulation extrusion to shielding, armouring and final assembly, our manufacturing processes are controlled to deliver reliable custom cables for demanding industrial and subsea applications.
Testing Capability
Mechanical and electrical testing is performed to verify cable reliability and performance before delivery.
FAQ
1. What factors should be considered when selecting a sonar cable?
Selecting a sonar cable depends on the system requirements, operating environment and transmission needs. Key considerations include signal integrity, cable length, operating depth, flexibility, shielding performance, mechanical protection and the required combination of power, signal or data transmission.
2. Can marine sonar cables integrate power, signal and fiber optic transmission?
Yes. Custom sonar cables can integrate power conductors, signal wires, data lines and fiber optic elements within a single cable structure. Hybrid sonar cable designs enable reliable power supply, communication and high-speed data transmission for advanced underwater acoustic systems.
3. How do sonar cables maintain signal quality in underwater environments?
Sonar cables maintain signal quality through optimized shielding, insulation and cable construction designed to reduce electromagnetic interference, minimize signal loss and protect sensitive acoustic data transmission during underwater operations.
4. What marine applications use custom sonar cables?
Custom sonar cables are used in various marine applications, including underwater acoustic systems, marine monitoring, hydrographic surveys, seabed exploration and subsea detection systems where reliable signal transmission is essential.
5. Can sonar cables be customized for harsh marine environments?
Yes. Sonar cables can be customized with different conductor configurations, shielding structures, reinforcement materials and protective jackets to withstand seawater exposure, mechanical stress, abrasion and long-term underwater operation.
