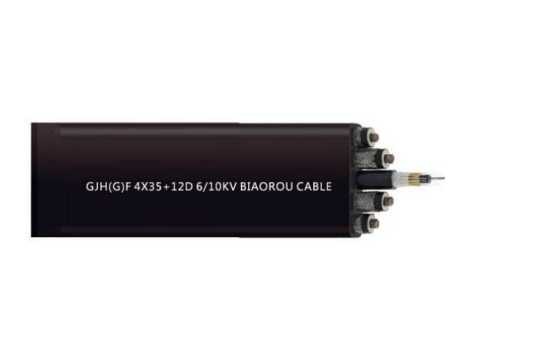

6/10kV Flat Reeling Cable with Optical Fiber

RouLine Flat Power and Fiber Optic Reeling Cables combine electrical power conductors and optical fibers in a single flat cable construction for dynamic cable reeling systems. Designed for industrial equipment requiring reliable power supply and high-speed data communication, these cables support repeated winding and unwinding in demanding operating environments. As a custom industrial cable manufacturer, RouLine tailors conductor sizes, voltage ratings, fiber counts, jacket materials, and cable dimensions to meet specific equipment requirements, installation conditions, and operational needs.

Custom Cable Solutions |       Flexible MOQ |       Fast Lead Time |

Key Features

Heavy-Duty Flexible Cable with Superior Abrasion, Crush, and Tensile Resistance

UV, Ozone and Hydrolysis Resistant

Resistant to Moisture & Saltwater / Corrosive Coastal EnvironmentsSuitable for Offshore or Marine Applications

Maximum Travel Speed：120M/minute

Maximum Tensile Load：Approximately 15 N/mm² of copper cross-sectional area

Specifications

We offer solutions tailored to specific customer requirements.

Applications

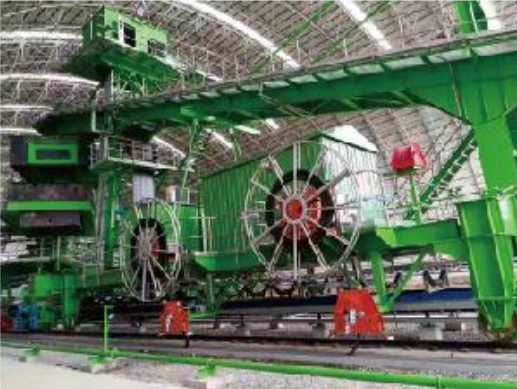

Flat power and fiber optic reeling cables are designed for mobile industrial equipment that requires reliable power transmission and optical communication during continuous movement. These cables are suitable for reel-operated machinery where electrical supply, control signals, and high-speed data transmission need to be integrated into a compact cable solution.

Depending on the equipment configuration, custom cable designs can accommodate different travel distances, winding cycles, mechanical stresses, and environmental conditions. Typical applications include port crane operations, overhead and gantry crane systems, and bulk material handling equipment, where dependable power delivery and fiber optic communication support equipment control, monitoring, and operational efficiency.

↗ Port Cranes & Container Handling

↗ Overhead & Gantry Cranes

↗ Bulk Material Handling Equipment

Case Study

A custom reeling cable solution engineered for Tianjin Port crane system, power transmission, high dynamic flexibility, tensile strength, and marine environmental resistance.

Reeling Cable Project for Tianjin Port

Quality Testing & Control |      Manufacturing Process |

Manufacturing Process

RouLine industrial cable manufacturing process covers conductor preparation, insulation and sheath extrusion, reinforcement, cable assembly, and final testing and inspection. As a custom industrial cable manufacturer, RouLine adapt cable structures, materials, and production processes to meet specific electrical, mechanical, and environmental requirements. The following stages demonstrate our manufacturing capabilities and quality control procedures for reliable industrial cable solutions.

→Cable Core Assembly Process           →Wire Stranding Process                      →Kevlar Braiding Process

Test Equipment

Industrial cables manufactured by RouLine are inspected using dedicated equipment for electrical, mechanical, and environmental testing. Depending on the cable design, testing may include high-voltage testing, insulation and continuity checks, tensile testing, flexing, temperature-humidity, salt-spray, and dimensional inspection. Testing procedures can be defined according to cable construction, operating depth, voltage rating, mechanical requirements, and applicable standards.  →View the Test Equipment in Use

Ordering Information

Customization: Fully supported

MOQ: project-based negotiation

Standard Lead Time: 3-6 weeks after order confirmation

Custom Development Works

FAQs

1. What is a flat power and fiber optic reeling cable used for?

A flat power and fiber optic reeling cable combines power conductors and optical fibers in one cable for mobile equipment requiring electrical power and data communication, such as port cranes, gantry cranes, and stacker-reclaimers.

2. What voltage rating and conductor sizes are available for this reeling cable?

This 6/10kV flat reeling cable is available with Class 5 copper conductors in configurations such as 4×25+12D1, 4×35+12D1, and 4×50+12D1, with custom conductor sizes available upon request.

3. What types of optical fibers can be integrated into a power and fiber optic reeling cable?

Single-mode 9/125 μm and multimode 62.5/125 μm optical fibers can be integrated to meet different industrial communication and data transmission requirements.

4. Which sheath materials are suitable for flat fiber optic reeling cables?

Specially formulated NBR/PVC or CR sheaths can provide oil and abrasion resistance. The material can be selected according to the cable's operating environment and mechanical requirements.

5. Can a flat power and fiber optic reeling cable withstand repeated winding and unwinding?

Yes. The cable can be designed for reel-based operation with suitable conductor stranding, anti-twisting reinforcement, sheath materials, and bending radius. The final construction should match the reel geometry, travel distance, and operating cycle.

6. Can custom flat power and fiber optic reeling cables be manufactured for specific equipment?

Yes. A custom reeling cable manufacturer can tailor voltage rating, conductor cross-section, optical fiber type and count, cable dimensions, and sheath materials to meet specific crane and material handling requirements.
