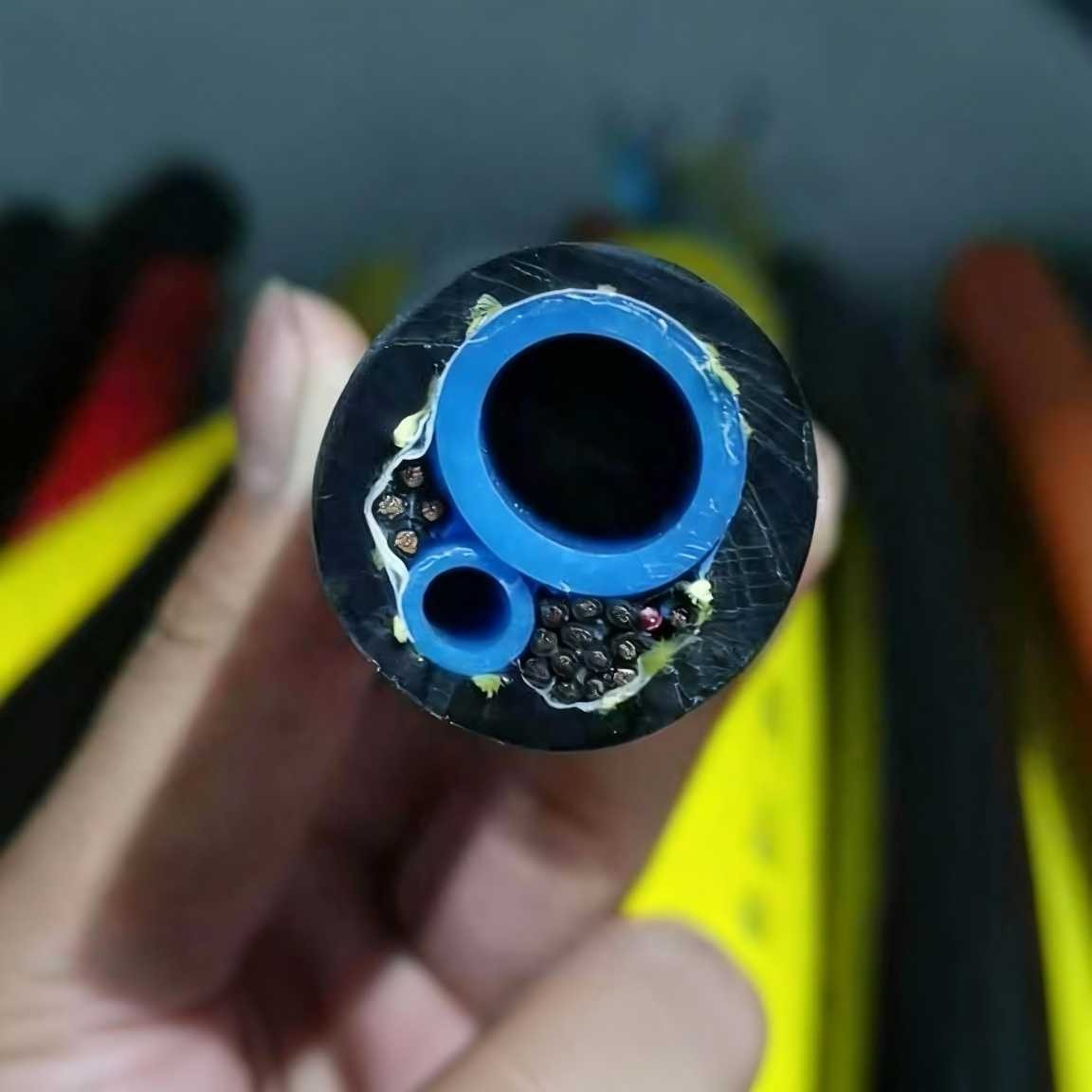

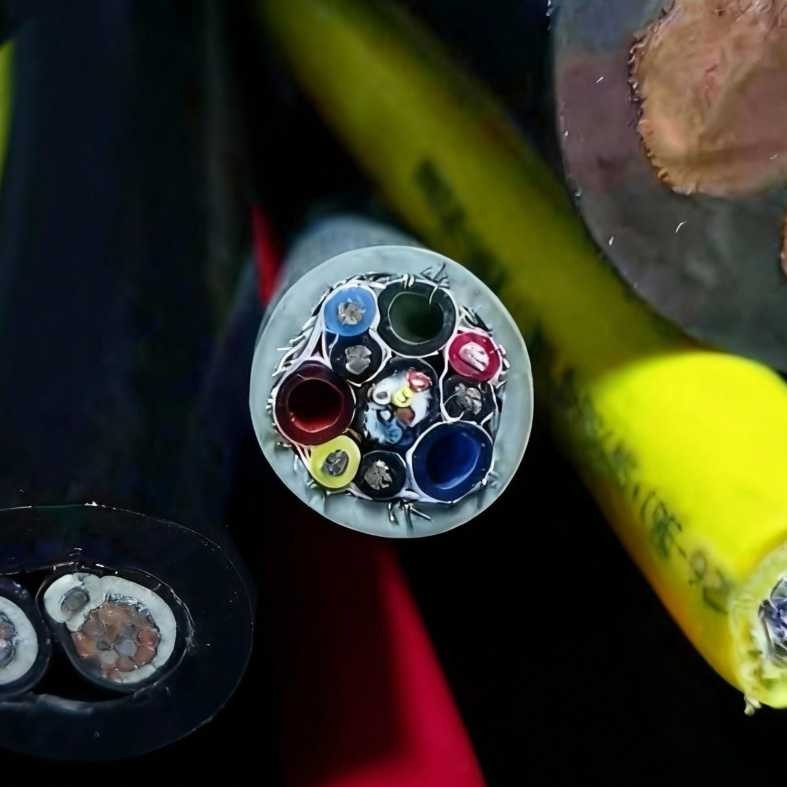

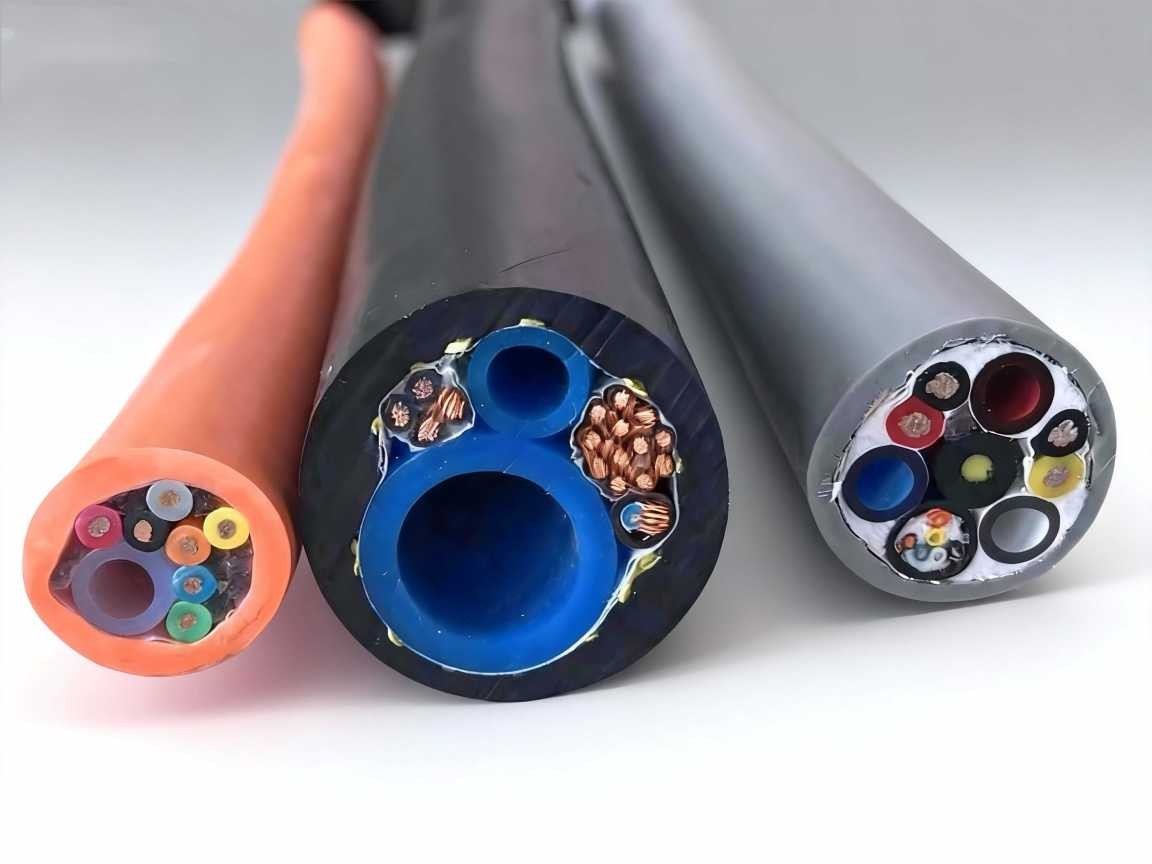

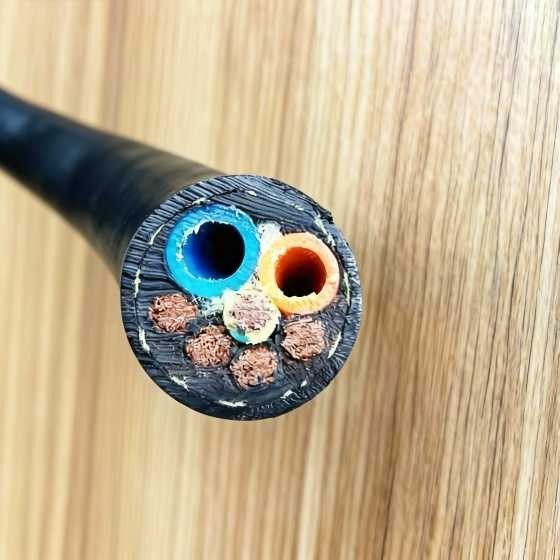

Electro-Hydraulic Umbilical Cable
Electro-Hydraulic Umbilical Cable
Subsea / Underwater Application
This product is a Subsea Electro-Hydraulic Umbilical Cable that combines the flexibility of a Custom Designed Umbilical Cable with the performance requirements of an Offshore Dynamic Electro-Hydraulic Umbilical Cable.
Engineered for harsh, humid, and corrosive environments, it integrates power, data, and hydraulic/pneumatic control into a single solution. It is widely used in subsea control systems, offshore engineering, and other extreme operating scenarios.
Integrated System Solution
Power
Data Transmission
Hydraulic Control / Air Hose
Tensile Strength
Features
Tensile Strength: from 0 to 8 tonnes
Hydraulic Control: High pressure hydraulic control hoses
Extensive Range: 1 to 60 cores
Conductor Cross-Sections: 0.08 mm² to 35 mm²
Other Options: Water Tightness Compound / Sealant / Water-Blocking Yarn
Corrosion Resistance：resistance to hydrolysis, corrosion, abrasion, and ultraviolet light.
Construction
Conductor：Fine-stranded, extra-flexible tinned soft copper wire.
Insulation：TPE, TPE, TPV, XLPE, DPEM
Core Structure：anti-twist layering, grouped gap filling, twisted pairs, and layered binding
Hydraulic Control: High pressure hydraulic control hoses
Optical Fiber：Single-Mode / Multi-Mode
Shielding：A combination of tinned copper braid provides 360° EMI/RFI shielding
Tensile Strength Member：Central Kevlar Core, Interstitial Kevlar Fill, Steel Wire Armored (SWA)
Outer Sheath: XLPE, DPEM
Specifications
Custom Tensile: Strength: 0 - 8 tonnes
Working Voltage: 300V ~ 1 kV (for higher voltage, please contact )
Test Voltage: 2000 V
Insulation Resistance: ≥20 MΩ·km (at 20°C）
Minimum Bending Radius: Dynamic: 7.5 × OD,
Fixed: 4 × OD
Operating Temperature: -40°C to +105°C
Ordering Information
Minimum Order Quantity (MOQ): 100 meters (or project-based negotiation)
Standard Lead Time: 5-8 weeks after order confirmation
Customization: Fully supported
Applications
Marine Geological Survey
Dynamic Power Cables
Cabled Seafloor Observatory Networks
Powering Subsea Booster Pumps/Compressors
Subsea Control and Power Distribution

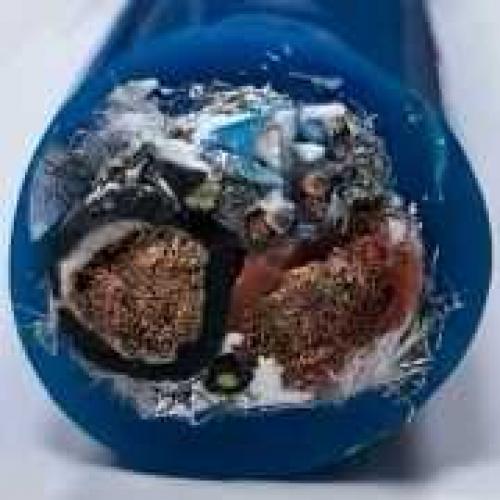

Other Subsea / Underwater Cables
